BYH-A-PC/BYH-A-SS/BYH-A-GH 【BACK】

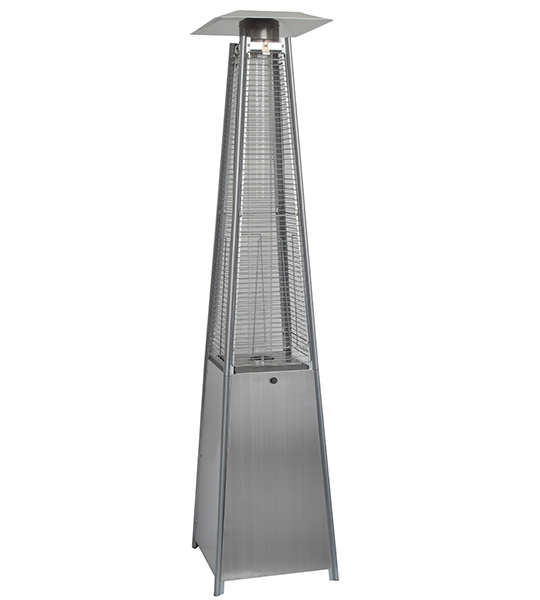

    Stand Circle  Flame Heater
    stainless steel #202
    Base:φ460 x81mm(H)
    Safety mesh:Dia360x860mm
    Tank Housing:φ375x715mm(H)
    Flame Screen:φ200x125mm(H)
    Reflector:φ450mm
    Quartz  tube:φ120×800mm
    Total Height:1800mm
    Power:11KW
    Flux: 800g/hr.
    Fuel: Propane or Butane or their mixture.
    With Glass tube
PRODUCTTION SPECIFICATION
Model BYH-A-PC/BYH-A-SS/BYH-A-GH
Total power (W) 11000W
Fuel consumption (G/H) 800g/hour
Heating area 4-9m²
Body material Steel
Tip over switch
(ODS) ×
Ignition Electric
Gas valve ×
Longevity lamp
Available gas propane, Butane or LPG
Ceramic plate qty per product /
Wheels
Net weight (Kg) 15
Gross weight (Kg) 17
Giftbox size (L*H*W mm) 460*460*880
Unit size (L*H*W mm) Dia: 530*1850
Loading quantity: 20' 96
40'FT 192
40'HQ 240
